Manipulation Equipment

KUKA KR 16 6 Axes Robot

Loads
Play Load 16 kgs
Supplementary Load 10 kgs
Working Envelope
Max. Reach 1610 mm
Other data and Variants
Number of Axes 6
Repeatability <+/- 0.1 mm
Weight 235 kgs
Mounting Positions Floor, Ceiling, Wall

Lathe Turn Table Attachment

With a HP Ac Motor
The AC motor is controlled with a PLC where we can precisely control the RPM during spraying on cylindrical objects
Working Envelope
Max. Reach 1610 mm
Max RPM 360
Bed Length 1.5 m
Max Ø 300 mm

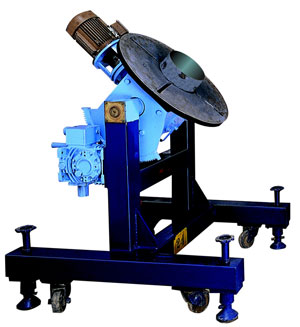

Tilting Turn Table
Speed Range 1610 mm
Table Tilt 360
Face Plate 1000 mm (40.1") Ø 38.1 mm (1.5") height 1016 mm(40") horizontal 889 mm (35") vertical
Max Load Horizontal 500 kgs
Input Power 230 V AC
